230V AC 1/2 inch (20 mm) Normally Closed (N/C)
₹368.93
+ ₹11.07 GST
MRP :
₹580
34.48% off
Min. Order : 1 piece
Product Details
Brand Name
silicone
Company Name
silicone
Description

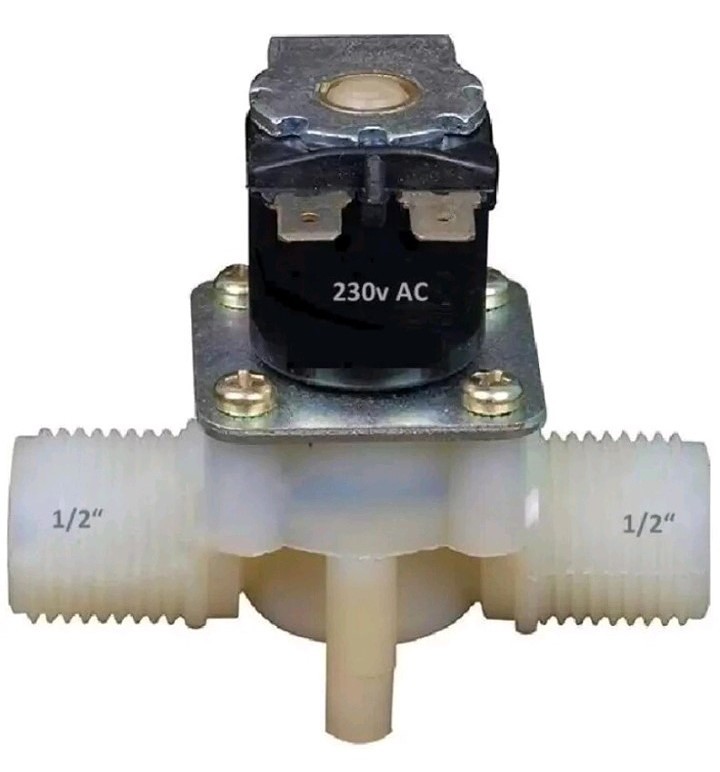

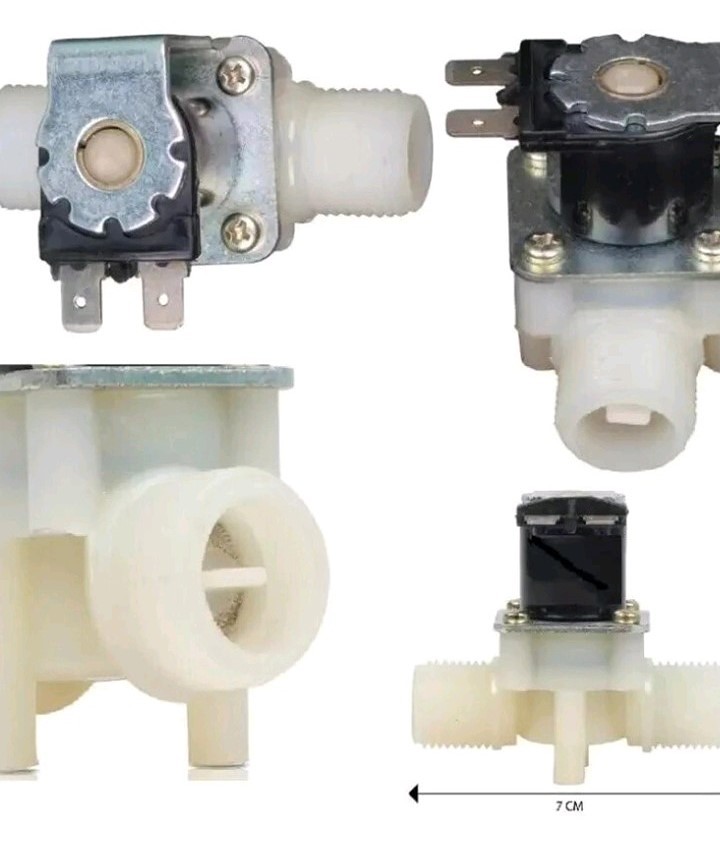

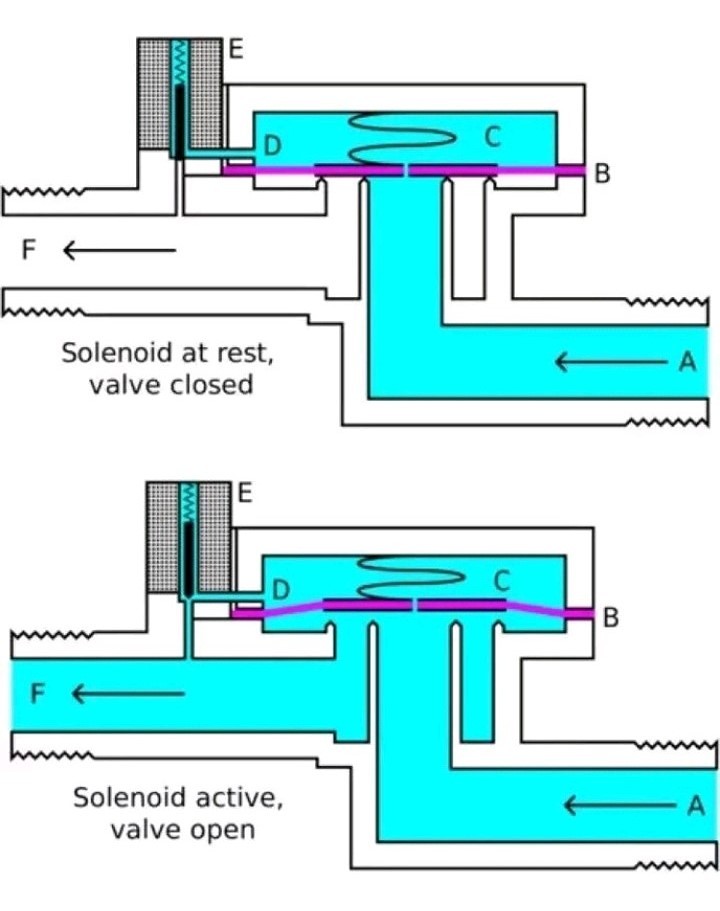

This image shows a 230V AC 1/2 inch (20 mm) Normally Closed (N/C) Solenoid Valve. It's likely made of plastic and has male threads on both inlet and outlet ports, each measuring 1/2 inch in diameter. The solenoid coil, which operates the valve, is clearly visible on top and is labeled "230V AC". Full Description: This is an electromechanical valve designed to control the flow of fluids (typically water or air). It consists of two main parts: * The Valve Body: Made of plastic, with a 1/2 inch male threaded inlet and a 1/2 inch male threaded outlet. The "Normally Closed" designation means that the valve is shut and blocks the flow of fluid when no electrical power is supplied to it. * The Solenoid Actuator: This is the electromagnetic part mounted on top of the valve body. It contains a coil of wire. When a 230V AC electrical current is passed through the coil, it creates a magnetic field. This magnetic field pulls a plunger (internal to the valve), which opens the valve and allows fluid to flow through. When the power is switched off, a spring typically returns the plunger to its original position, closing the valve again. Common Uses: This type of solenoid valve is versatile and used in various applications where remote or automatic control of fluid flow is required. Some common uses include: * Automated Irrigation Systems (Agro Drip Irrigation, Gardening): Controlling the flow of water to different zones or at specific times. * Water Dispensers and Purifiers (RO Systems)
